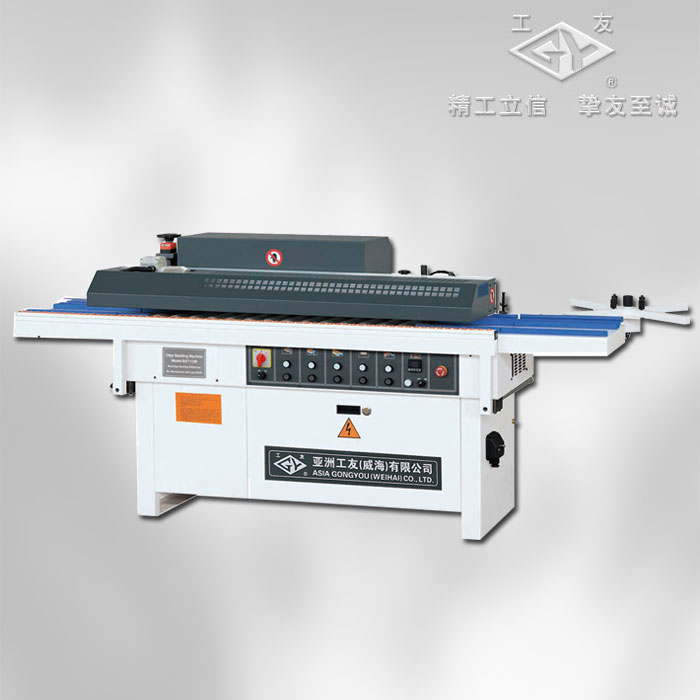

| Technical Specification | Unit | BJF115M |
| Panel length | mm | Min.280 (PVC) |
| Panel width | mm | Min.90 |
| Workpiece thickness | mm | 10~45 |
| Edge width | mm | 12~48 |
| Banding belt thickness | mm | 0.4~3 |
| Feeding speed | m/min | 6.4 |
| Total power | kW | 2.74 |
| Air pressure | MPa | 0.6 |
| Overall dimensions | mm | 2320×800×1070 |
| Net.weight | kg | 400 |
